Is the VW Caddy a good project van?

Yes — the PQ35 platform means Golf Mk5/Mk6 coilovers, wheels (5x100), brakes and some lighting fit directly, so the Caddy is one of the cheapest and best-supported vans to lower and style. The “Caddy scene” aftermarket is huge.

Which Caddy engine is best?

For performance, the 2.0 TDI 140 — it remaps strongly. For cheap reliability, the 1.9 TDI 105 (ideally non-DPF). For an economical petrol daily, the 1.2 TSI 105.

What wheel fitment does the Caddy use?

The Caddy Mk3 uses a 5x100 PCD with a 57.1mm centre bore — the same as the Golf Mk4/Mk5 and New Beetle — but you must buy wheels with a van-rated load index for legal road use.

Are Caddy parts expensive?

No. Shared PQ35 mechanicals keep servicing cheap, and the styling aftermarket is large and competitive. Just ensure any wheels and suspension carry a van-rated load index.

Can I visualise mods on my Caddy?

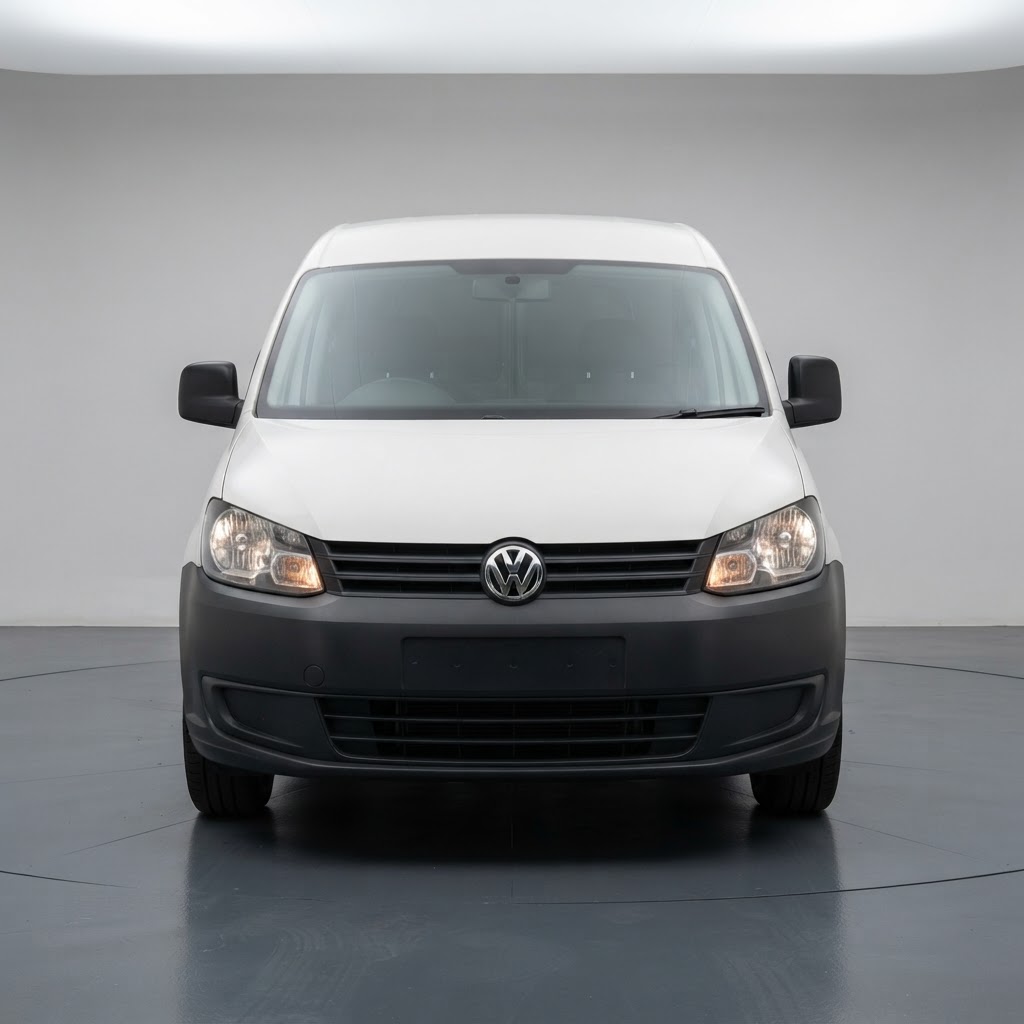

Yes. The VW Build configurator supports the Caddy — preview lowering, wheels, colours and lighting on a photoreal Caddy render before you order parts.

VW Model Guide

VW Caddy (2004–2015)

The car-derived van that’s small, cheap and cheerful to mod

Build This Model Shop Parts

Years

2004–2015 (Caddy Mk3, 2KD)

Body

Panel van / Kombi (5-seat)

Platform

VW Group A5 (PQ35) — shared with Golf Mk5 / Touran / Scirocco

Boot

Up to 3.0 m³ panel

The VW Caddy Mk3 (2004–2015) sits on the PQ35 platform shared with the Golf Mk5 and Touran, so it drives like a car and has access to a huge pool of compatible TDI/TSI engines and suspension parts. It is the heart of the “Caddy scene” — lowered, styled compact vans with big aftermarket support.

Because it is PQ35-based, much of the Golf Mk5/Mk6 aftermarket — coilovers, wheels (5x100), brakes and some lighting — transfers directly, making it one of the cheapest, best-supported vans to modify.

Use this guide to pick the right engine, spot the common faults, and spec your own Caddy in the free VW Build configurator before you spend on parts.

Best Engines

2.0 TDI (140 PS)
The strong all-rounder — remaps to 170+ PS and pulls well loaded.
1.9 TDI (105 PS)
The indestructible workhorse — find a non-DPF example for the easiest, cheapest running.
1.2 TSI (105 PS)
The economical petrol pick for a daily-driven, lowered Caddy.

What to Check Before You Buy

!On the 1.9 TDI (PD), check the camshaft, injectors and timing-belt history.
!If buying a diesel for short trips, prefer a non-DPF 1.9 TDI to avoid DPF clogging.
!On 7-speed DSG models, verify mechatronic health and 40k-mile oil services.
!Check front struts/springs on lowered builds — budget for uprated coils.
